Autel MaxiSys MSULTRA Automotive Diagnostic Tablet
Autel MaxiSys MSULTRA Automotive Diagnostic Tablet - Image 2
Autel MaxiSys MSULTRA Automotive Diagnostic Tablet - Image 3
Autel MaxiSys MSULTRA Automotive Diagnostic Tablet - Image 4

Autel MaxiSys MSULTRA Automotive Diagnostic Tablet

Original price was: $5,995.00.Current price is: $5,695.00.

SKU: MSULTRA Category:

Autel MaxiSys MSULTRA Automotive Diagnostic Tablet

The Autel MaxiSYS Ultra is a powerful and versatile diagnostics tablet that is perfect for professional automotive and medium truck technicians.

This 12.9-inch Android tablet, and 512GB of built-in memory, making it one of the most powerful diagnostic tools on the market today.  The internal MaxiFlash VCMI is a 5-in-1 communication and testing tool that provides wireless vehicle communications between the diagnostic tablet and the vehicle.  It also functions as an oscilloscope, waveform generator, multimeter, and CANBUS tester.

As a added benefit the Ultra features a dynamic topology module mapping for supported vehicles combined with its Intelligent Diagnostics feature that guides the technician from code to repair with detailed information and illustrations.

The rechargeable Lithium battery provides 8 hours of continuous use, and a docking station makes charging and storing convenient in a busy workshop. The MSULTRA features repair fault guidance providing the most common root causes for various diagnostic related issues.

Autel MaxiSys MSULTRA Automotive Diagnostic Tablet

Autel MaxiSys MSULTRA Automotive Diagnostic Tablet

The MSULTRA Includes:

  • Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
  • 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
  • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
  • Oscilloscope Preset Guided & Component Tests / Waveform Library
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Split Screen Multi-Application Function / Dual Wi-Fi Connection

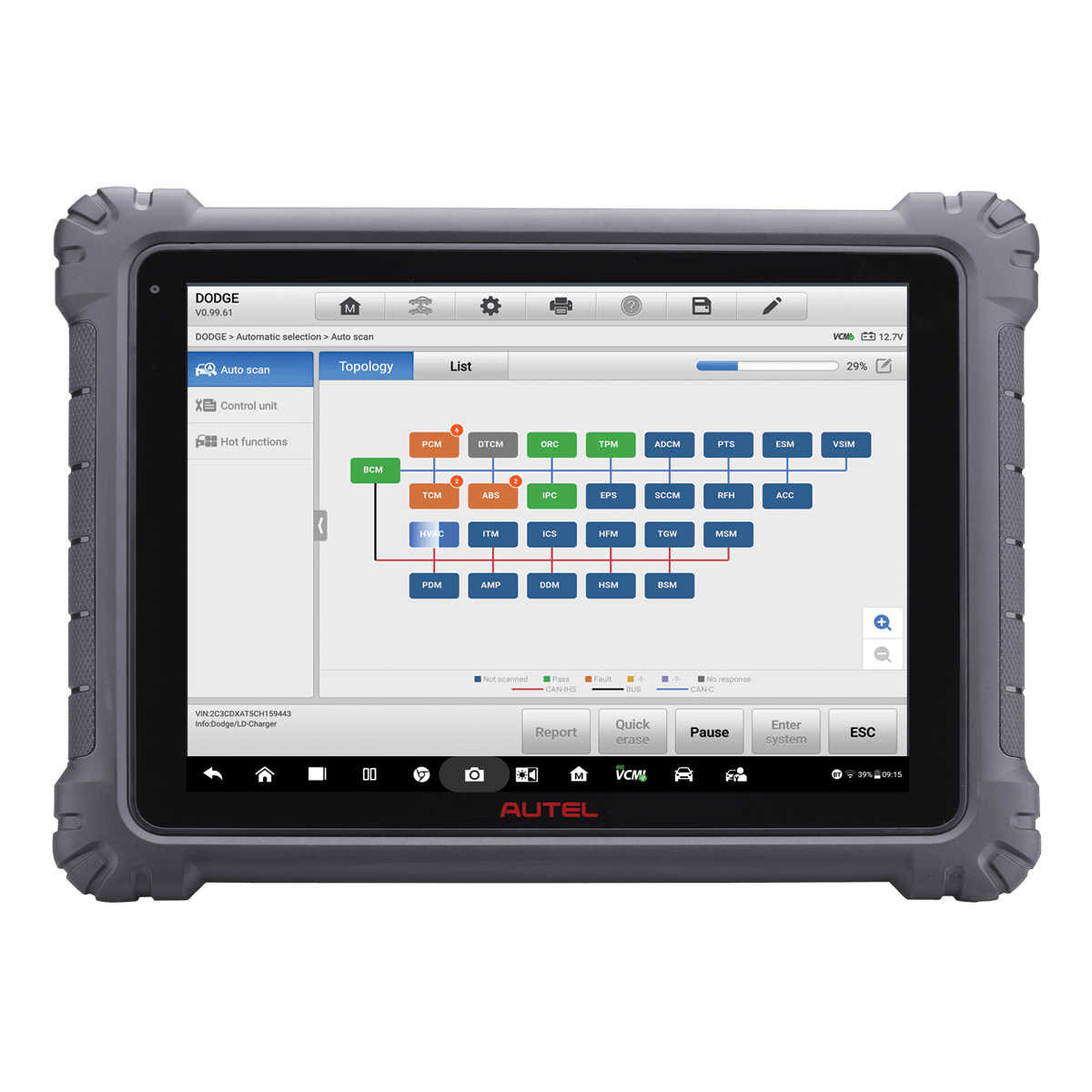

  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • Relevant Cases: DTC Troubleshooting / Repair Tips Video Library – Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
  • Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader – ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

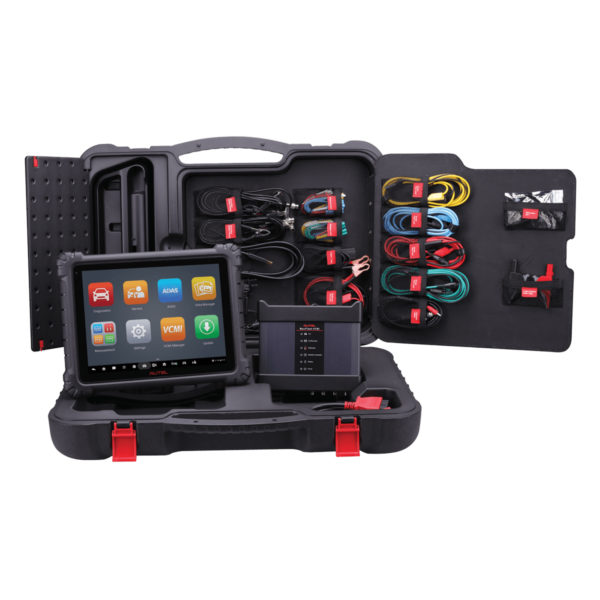

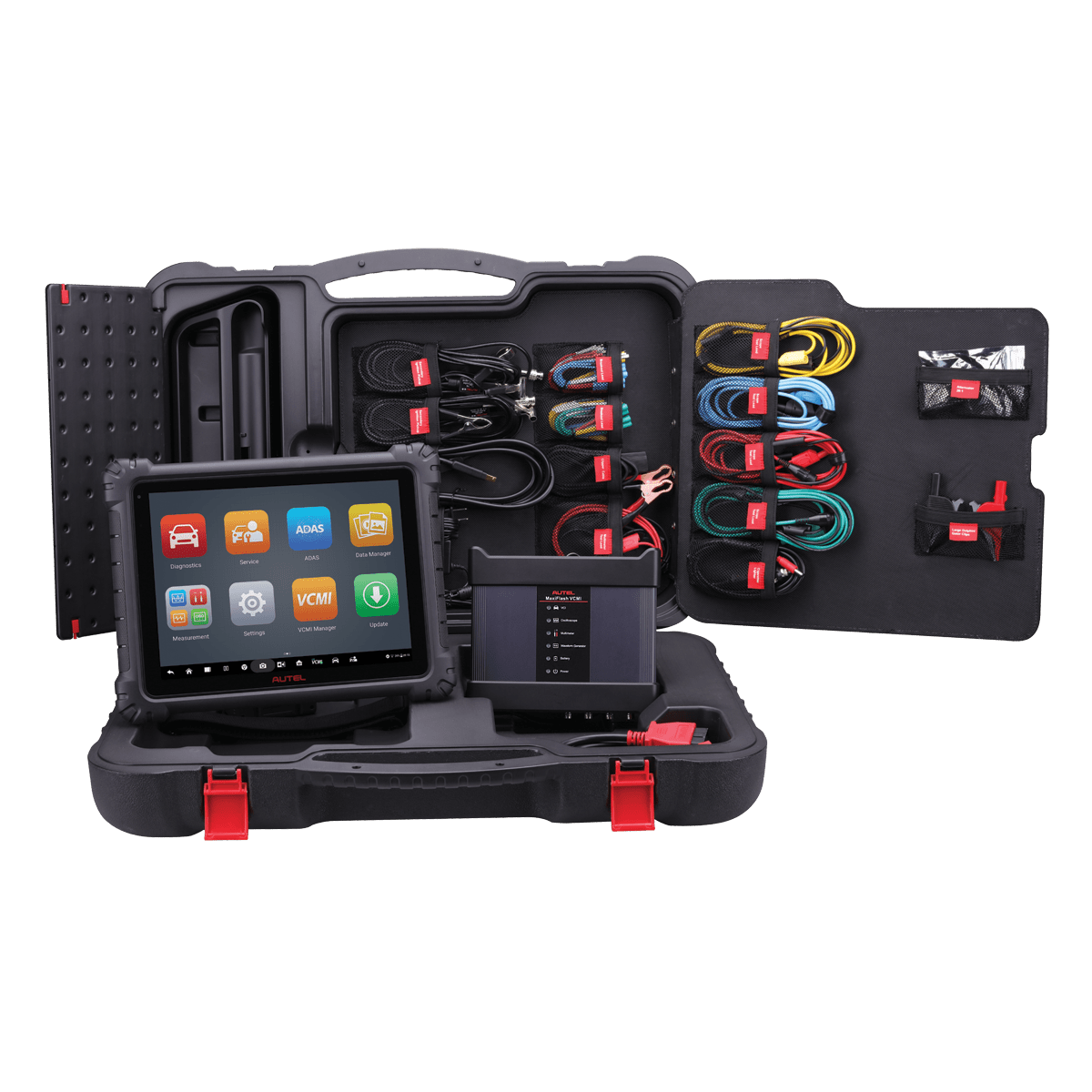

  •  Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN – 18000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Autel MaxiSys MSULTRA Automotive Diagnostic Tablet

Specification

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (Two USB HOST Type A, one USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
