Autel MaxiSYS MS919 Automotive Diagnostic Tablet

Autel MaxiSys MS919 Automotive Diagnostic Tablet

The Autel MaxiSys MS919 is a cutting-edge diagnostic tool that provides technicians with the guidance and tools they need to confirm repairs.

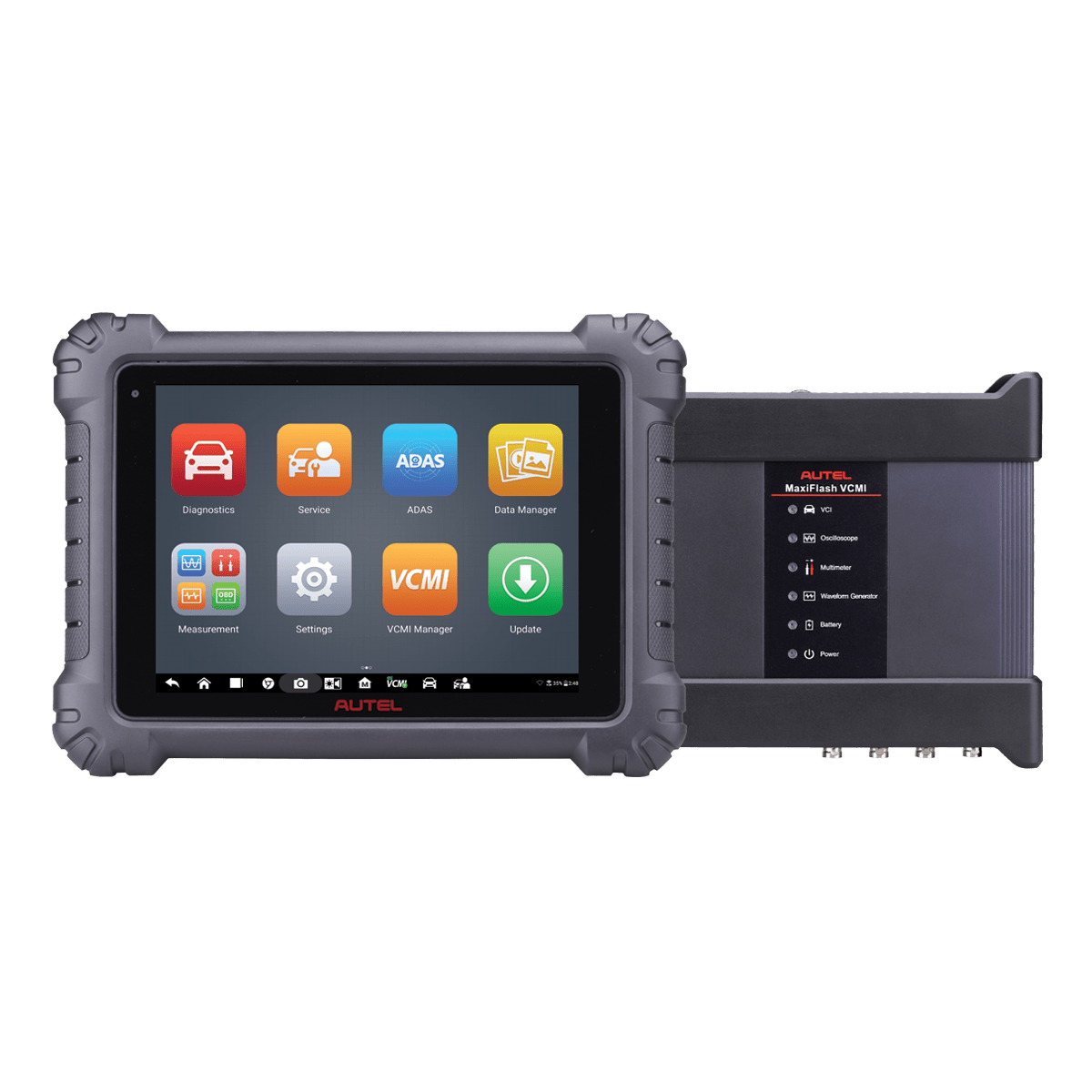

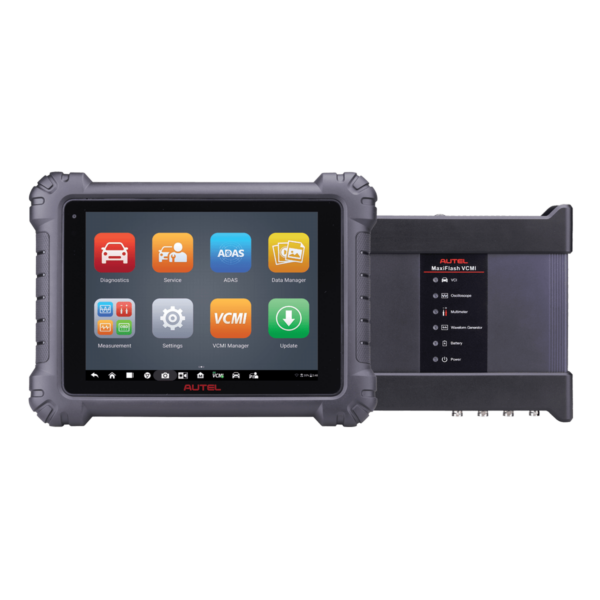

Powered by an Octa-core processor and featuring a large 9.7-inch touchscreen tablet, the MS919 is packed with features to make diagnostics and repairs faster and easier.  The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester – making it a powerful tool for troubleshooting.

With the MS919 software, technicians have access to a large library of preset tests and extensive waveform data, so they can quickly identify and fix problems.

Plus, DTC and sensor-specific test options help technicians test more accurately by providing probe and component location diagrams. Includes docking station and split screen capabilities.

Autel MaxiSys MS919 Automotive Diagnostic Tablet

The Autel MaxiSYS MS919 includes:

• 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
• 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

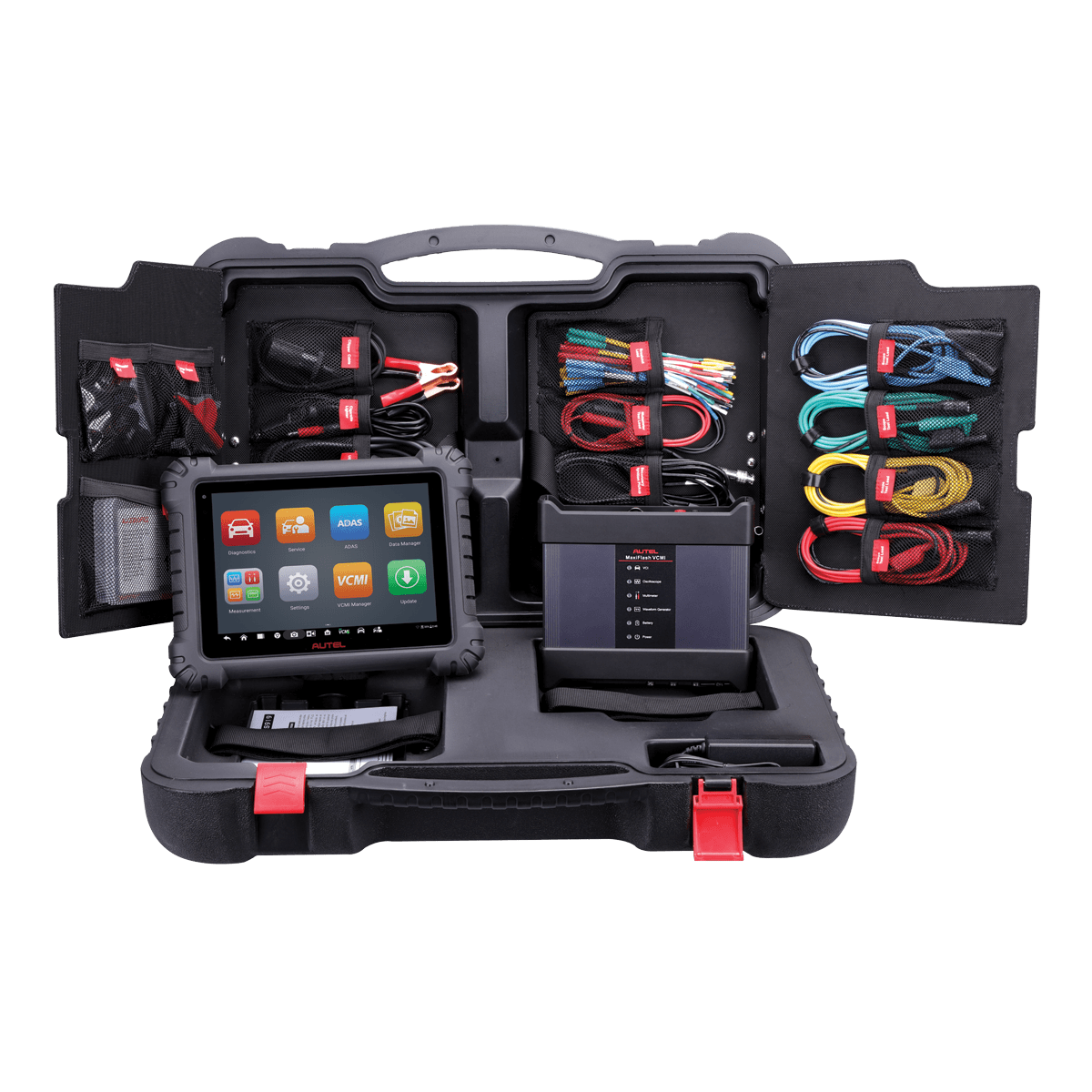

• Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• Dual Wi-Fi Connection
• 15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Autel MaxiSys MS919 Automotive Diagnostic Tablet

Specification

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (TWO USB HOST Type A, ONE USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

What our customers think about it:

First off, the speed and responsiveness of the MS919 are impressive. Whether I’m scanning a vehicle’s system or updating software, this tablet keeps up with the pace of my work. The octa-core processor and the 128GB of storage mean I can run multiple diagnostics, save reports, and still have room for everything else I need.

The software suite on the MS919 is top-notch. It covers a wide range of vehicle makes and models, and I haven’t encountered a car yet that this tool can’t handle. The extensive OE-level coverage and advanced diagnostics allow me to get to the root of the problem quickly, which is a huge plus when you’re trying to keep up with a busy schedule.
