Autel MaxiSYS MS909 Diagnostic Tablet

Original price was: $3,995.00.Current price is: $3,795.00.

SKU: MaxiSYS MS909 Category:

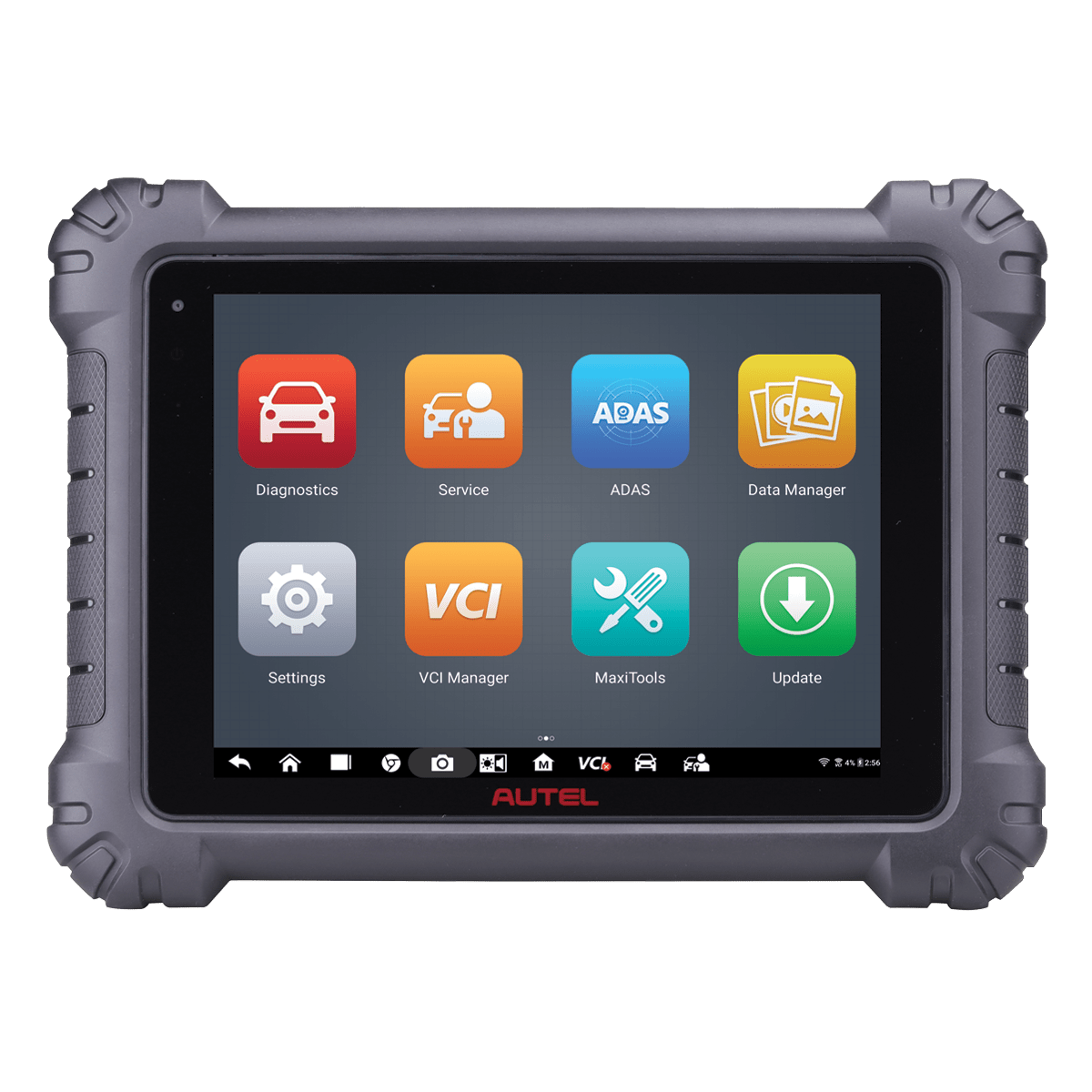

Autel MaxiSYS MS909

Autel Ms909 Features

  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Autel MaxiSYS MS909

  • Topology Module Mapping – You can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly.
  • 36+ Maintenance & Service Functions – Autel MS909 scan tool with 36+ maintenance and service functions to provides one-stop solution. Including EPB, Oil Reset, DPF, SAS, TPMS, IMMO-Keys, BMS, Injector, Throttle, Suspension, Brake bleed, etc.
  • Bi-Directional Control – With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc. to test its functionality.
  • Advanced ECU Coding & Programming – Autel MaxiSys scanner MS909 is upgraded of MK908P/Elite/Elite 2. Advanced online ECU programming can replace the existing software/ firmware in the ECU, program new ECUs for specif BMW & Benz to fix software-controlled driving performance.
  • More Protocols & Newer Vehicle Coverage – Autel MaxiSys MS909 with the updated J2534 programmer which supports D-PDU, RP1210, CAN FD, J2534 and DoIP protocols. Wider protocol compatibility allows MS909 to work on 99% of vehicles up to 2024 on the market.



Autel MaxiSYS MS909

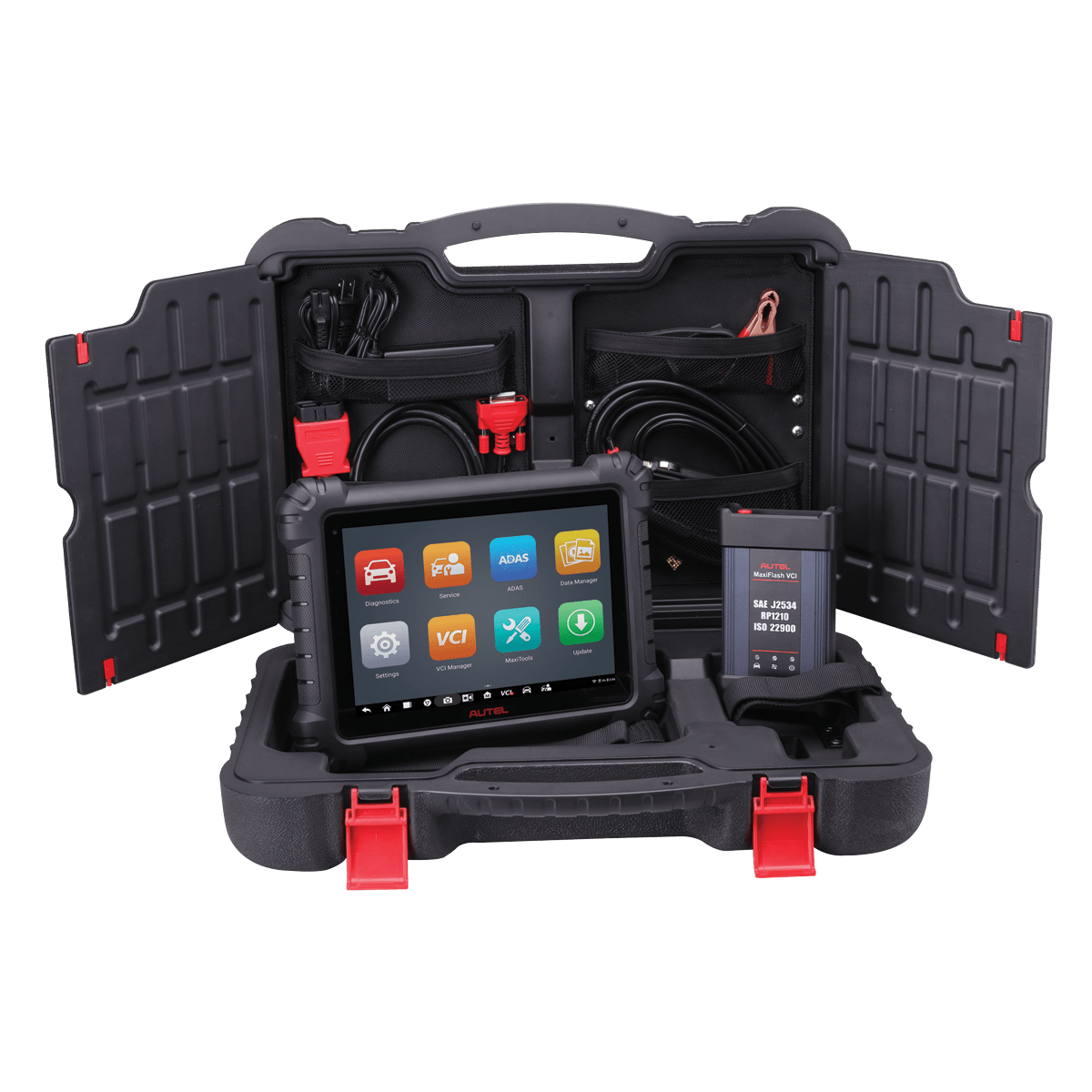

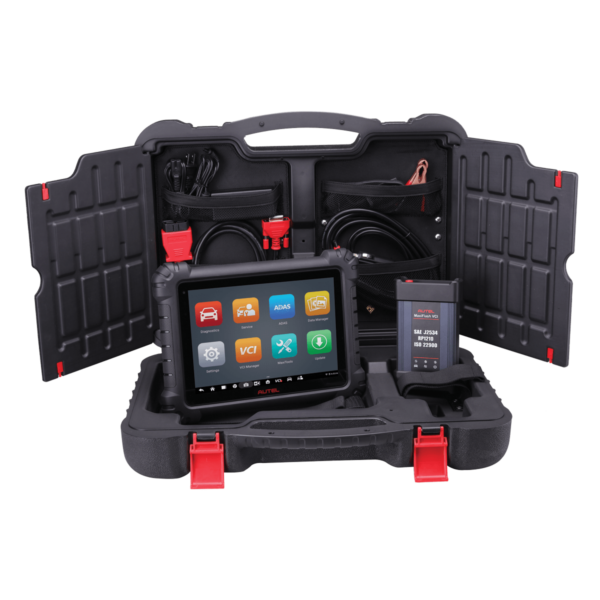

Package List

  • 1x MS909 Main Unit
  • 1x MaxiFlash VCI
  • 1x Main Cable V2.0
  • 1x USB 2.0 Cable V2
  • 1x AC/DC Adapter(12V)
  • 1x Cigarette Lighter
  • 2x Light Fuse 6x30mm
  • 1x Clipper Cable
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth
  • 1x Carrying Case 504 x 133 x 360 mm

Autel MaxiSYS MS909

Specifications

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity • Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera (rear) Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
